Product Overview

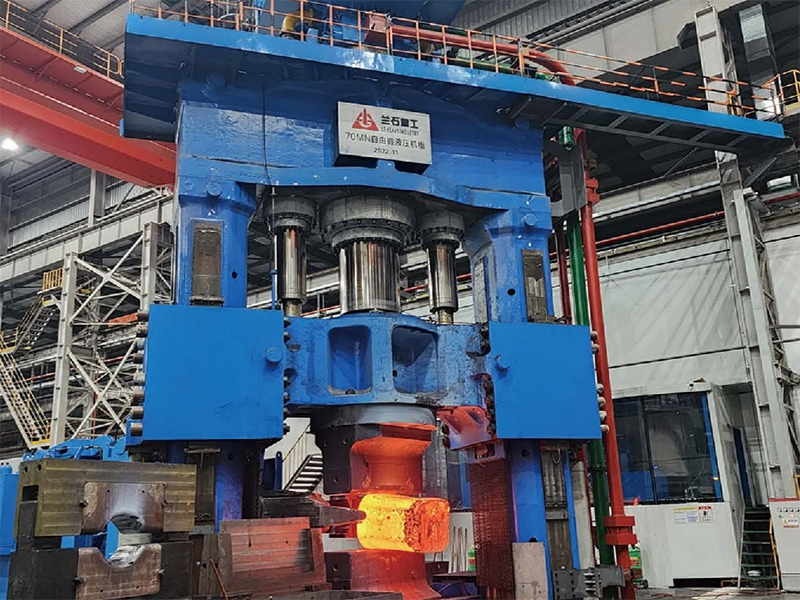

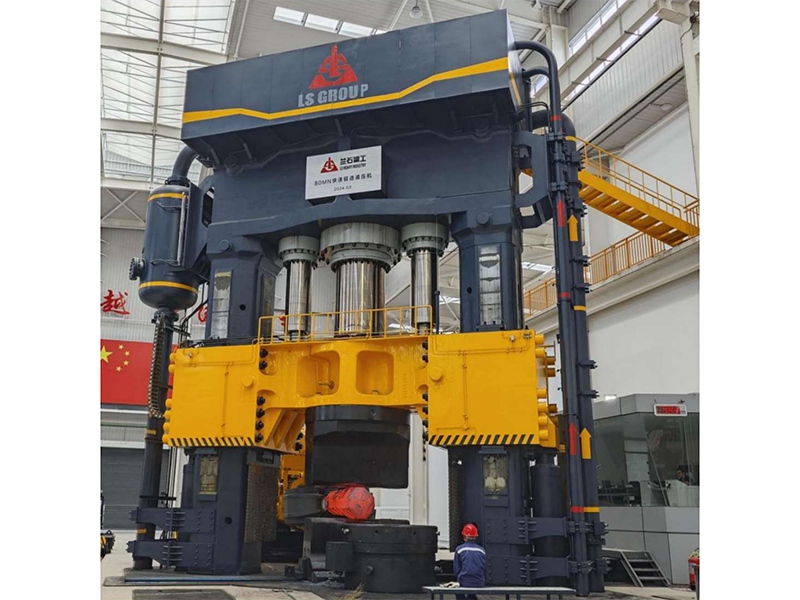

The high-speed forging hydraulic press unit is a new type of open-die forging equipment developed in the 1980s. It is an upgraded product of forging equipment such as open-die forging hammers, hydraulic presses and oil hydraulic presses.
Product series: 3.15MN, 6.3MN, 8MN, 10MN, 12.5MN, 16MN, 20MN, 25MN, 31.5MN, 35MN, 45MN, 50MN, 63MN, 70MN, 80MN, 100MN, 125MN, 165MN, 185MN, 200MN, 220MN, etc.
1. Push-down type forging press (20MN-125MN)
2. Pull-down type forging press (5MN-35MN)
3. High speed forging press with moving cylinders (3.15MN-16MN)
Structural form: Small-sized high-speed forging presses mainly use a double-column pull-down structure, which has the characteristics of low center of gravity, good stability, and small hydraulic impact; medium and large-sized high-speed forging presses use a push-down structure to reduce the inertia of the moving parts. It is easy to accurately control the forging accuracy, increase the forging frequency, save energy and protect the environment.
Operating mode: manual, automatic, semi-automatic, and combined operation.
Main equipment of production line: main press, upper die fast shifting device, table shifting equipment, transverse tool sliding device, tool magazines, hydraulic control system, automation control system, operation monitoring system, process engineer station, detection and maintenance engineer station, forging manipulator, ingot turning cars, rotary lifting table, charging and discharging devices, temperature measurement system of forgings.
